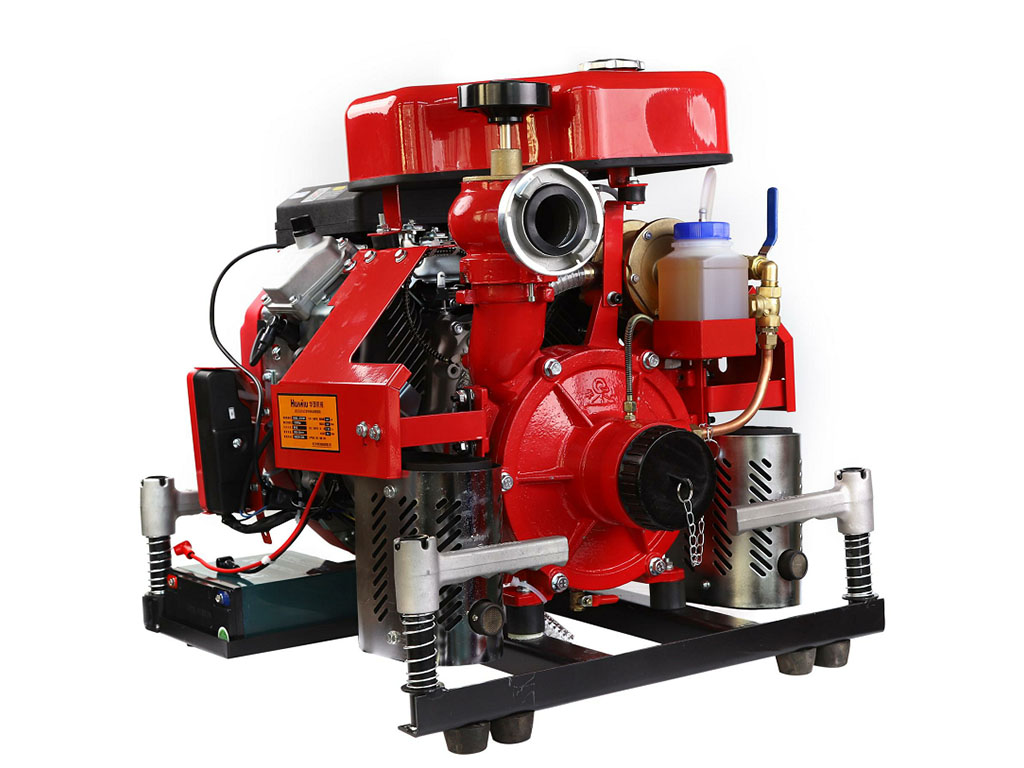

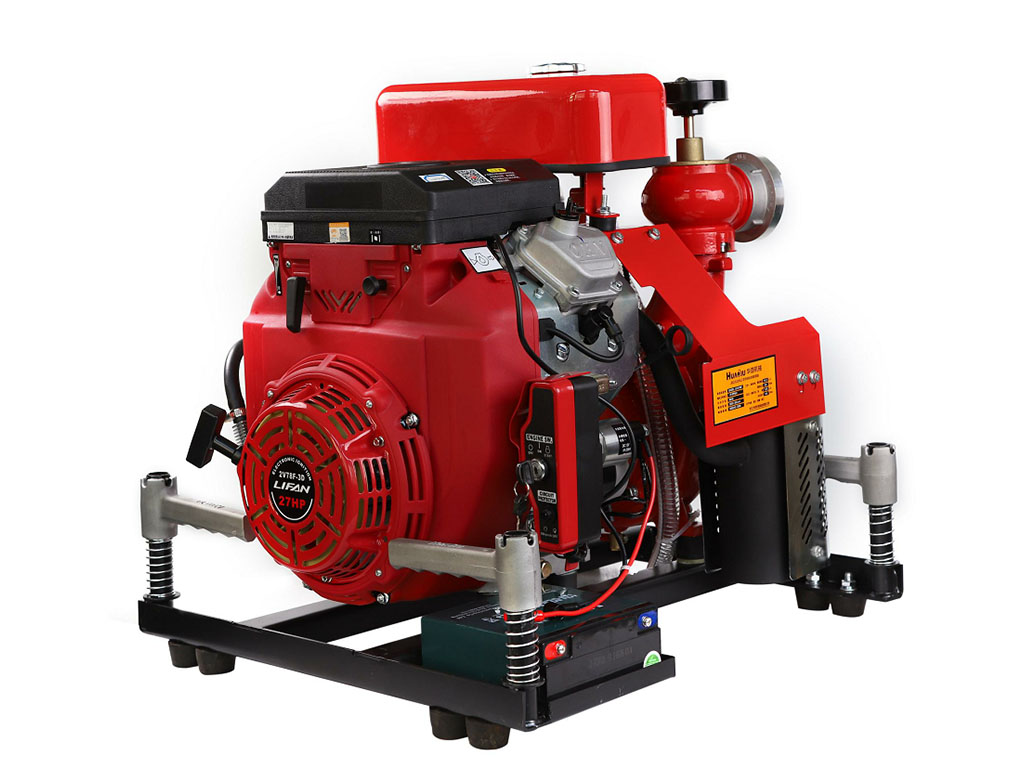

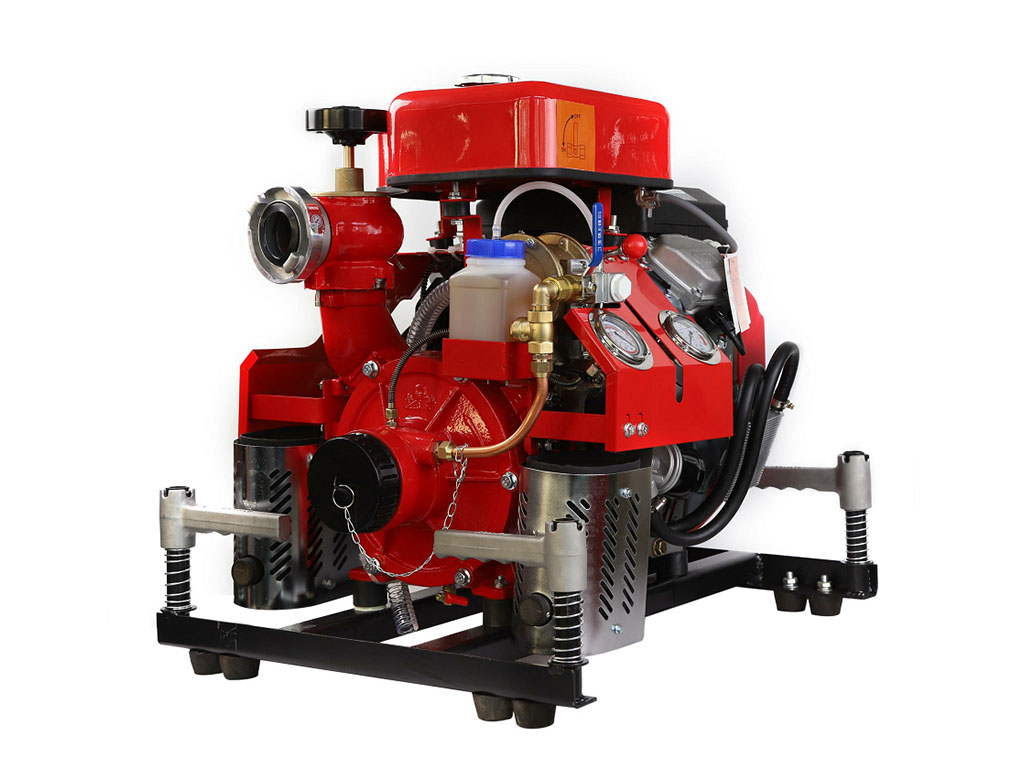

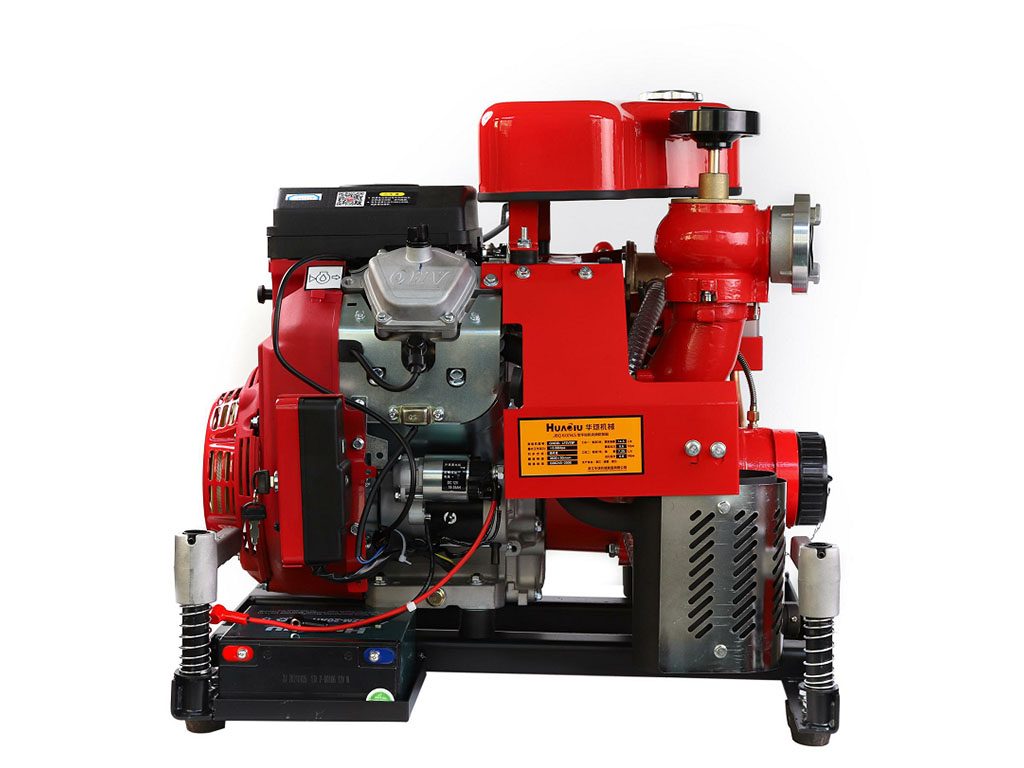

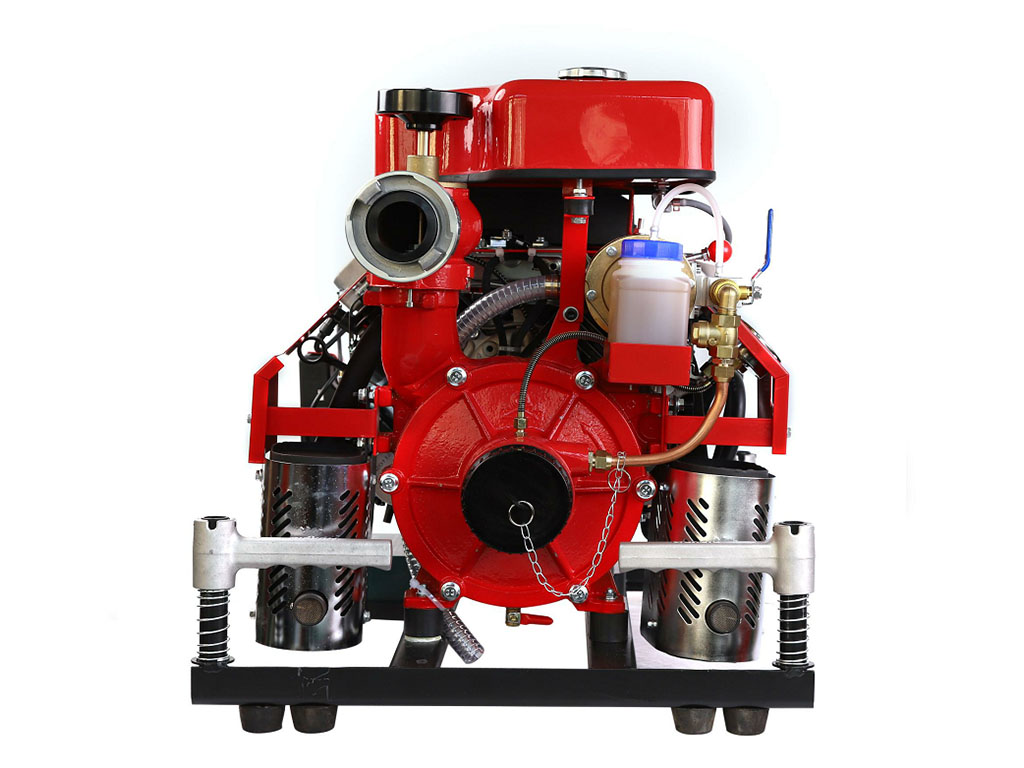

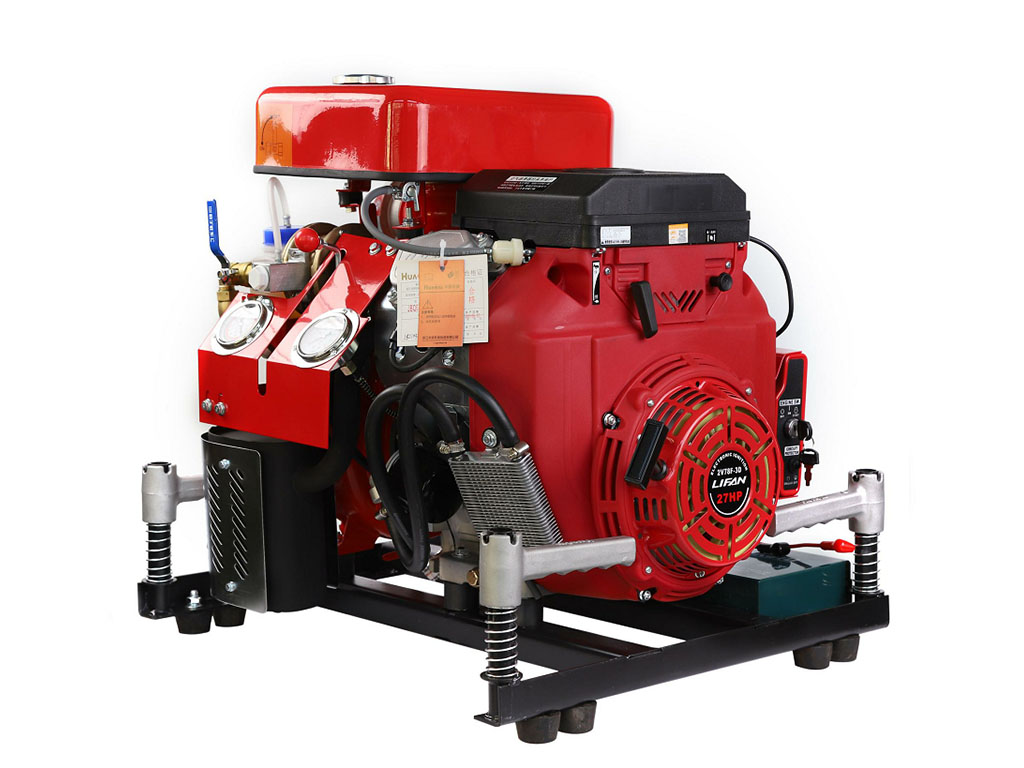

Troy-860 Fire Fighting Water Pumps

Troy-860 Fire Fighting Water Pumps

Model No: TRF-689F-FWP

Key Specifications

• Model No: TRF-689F-FWP.
• Total Weight: 100kg.
• Suction time: ≤ 15s.
• Fuel tank Capacity: 8L.
• Engine oil capacity: 1.5L.
• Rated Flow: 880L/min.
• Rated Pressure: 0.60MPa.
• Fuel consumption: 8L/h.
• Inlet Diameter: 3" (80mm).
• Outlet Diameter: 2.5"(65mm).
• Number of outlets: 1 or 2.
• Outlet valve type: Ball Valve.
• Output Power: 27HP(20kW).
• Maximum Water Lift: 100m.
• Maximum suction depth: 9m.
• Cylinder: Double Cylinders.
• Starter: Recoil/electric starter.
• Dimensions: 690x600x630(mm).
• Fuel System: Solenoid valve-carburetor.
• Lubrication system: Forced lubrication.
• Fuel Type: Unleaded gasoline Min.87 octane.
• Ignition method: Transistor electronic ignition.
• Engine: Four-stroke, air-cooled gasoline engine.
